Floor slabs

FLOOR

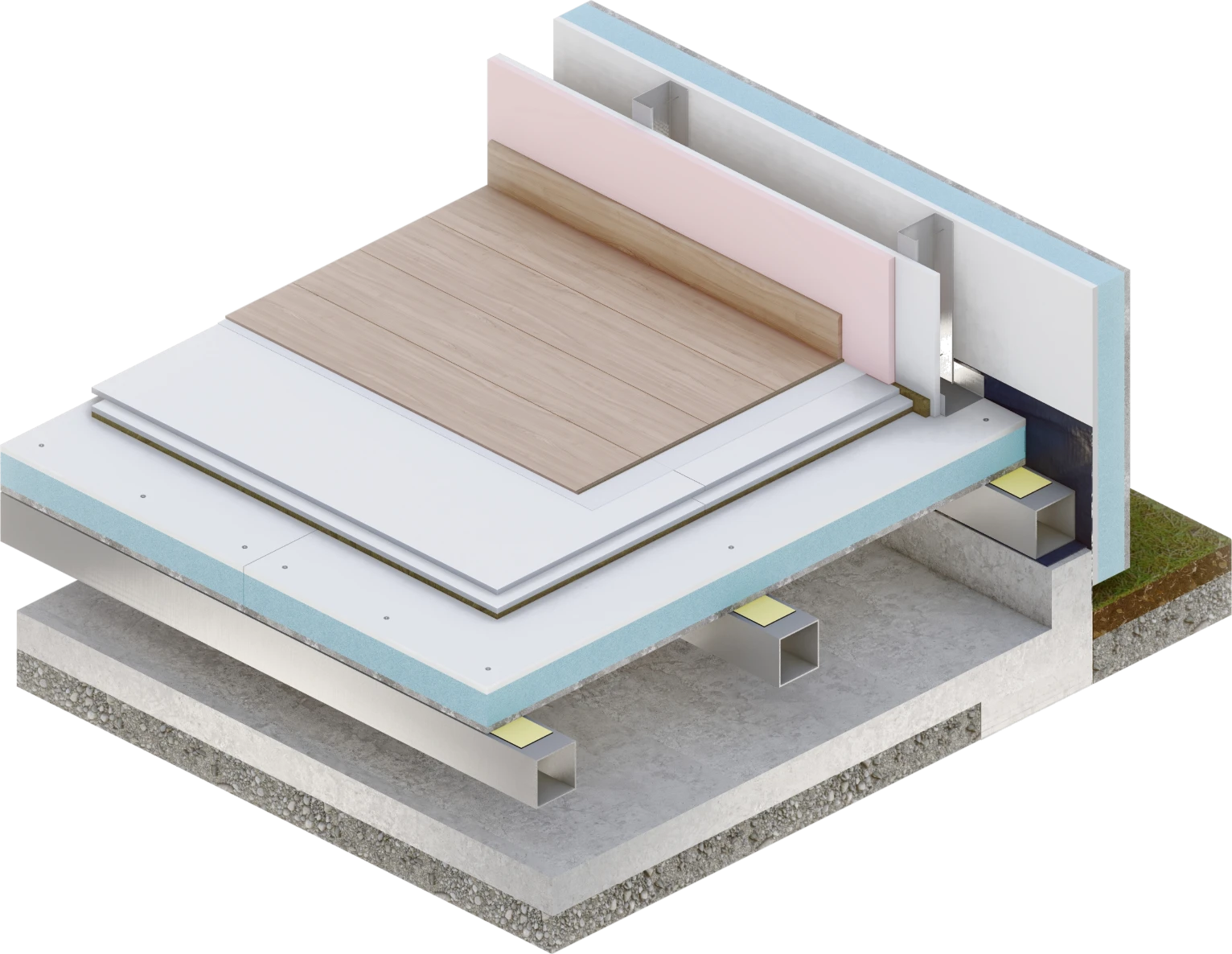

THERMOCHIP FLOOR is the certified solution for interior floors. Composed of a THERMOCHIP® interior panel with a variable insulating core, a dry slab over the panel and an optional double-plate COAT false ceiling. Arrangement of supports every 60cm. Free finish.

  • 1

    THERMOCHIP®

    inner panel

  • 2

    dry screed

    Optional anti-impact layer

  • 3

    Finish

    Free

  • 4

    Structure

    Supports every 60cm

  • 5

    False ceiling

    Optional

  • 6

    acoustic tape

    Optional.

1 2 3 4 5 6
FLOOR

System components

Finish

Free finish on dry screed.

dry screed

20mm dry slab on panel. Possibility of built-in anti-impact layer for greater acoustic performance.

Structure

Wooden or mental supports every 60cm in walkable slabs.

False ceiling

Optional false ceiling.

acoustic tape

Possibility of installing acoustic tape between the structure and the Thermochip panel for greater impact noise reduction.

mineral wool

Possibility of filling the air chamber with extra mineral wool insulation.

Characteristics

Icono Aislamiento térmico

Thermal insulation

Insulating core of variable thickness that allows the transmittance to be adapted to the needs of each project.

Icono Aislamiento acústico

Acoustic insulation

Continuous acoustic insulation in the building envelope.

Fire resistance

Certified resistance and reaction to fire.

Load resistance

High mechanical resistance against positive and negative loads.

Icono Certificado ETE

DAU Certificate

Maximum certification that guarantees regulatory compliance for its use.

Lightweight system

Reduces the impact on foundations, transportation and installation.

Reducción de tiempos

Time reduction

Panels that unify decoration, insulation and exterior support.

Asistencia técnica

Technical assistance

Technical department at your disposal to solve any query.

Certificates

Certificado DAU 20/121

DAU 20/121

Enclosure of flat roofs, mezzanine floors and sanitary floors with multi-layer panels composed of fiber cement boards, XPS sheets and fibrogypsum boards.

Discharge

PASSIVE HOUSE INSTITUT - COAT

With the Thermochip HOUSING Construction System the wintertime thermal insulation of buildings can be ensured. The system is constructed out of timber studs, beams and an outer sandwich panel.

Discharge
Certificado BREEAM

Sustainability, energy efficiency and comfort standards.

Discharge
Certificado de Declaración Ambiental de Producto

Environmental Product Declaration Certificate.

Discharge

Sustainability, energy efficiency and comfort standards.

Discharge

Life cycle analysis

Together with the Institute of Construction Technology (ITeC), we have evaluated the different construction systems, and the results indicate that choosing THERMOCHIP over traditional or industrialized concrete systems for your home means:

Icono emosiones de CO2
50%

less CO₂ emissions

Icono consumo nergético
41%

less energy consumption

Icono consumo de agua
65%

water consumption savings
