THERMOCHIP TFbcY
- Abroad fibrous cement board
- Core extruded polystyrene
- Inside fibrous plaster board
FLOOR
10 March 2026
ROOF
10 March 2026
Floor slabs
FLOOR-S

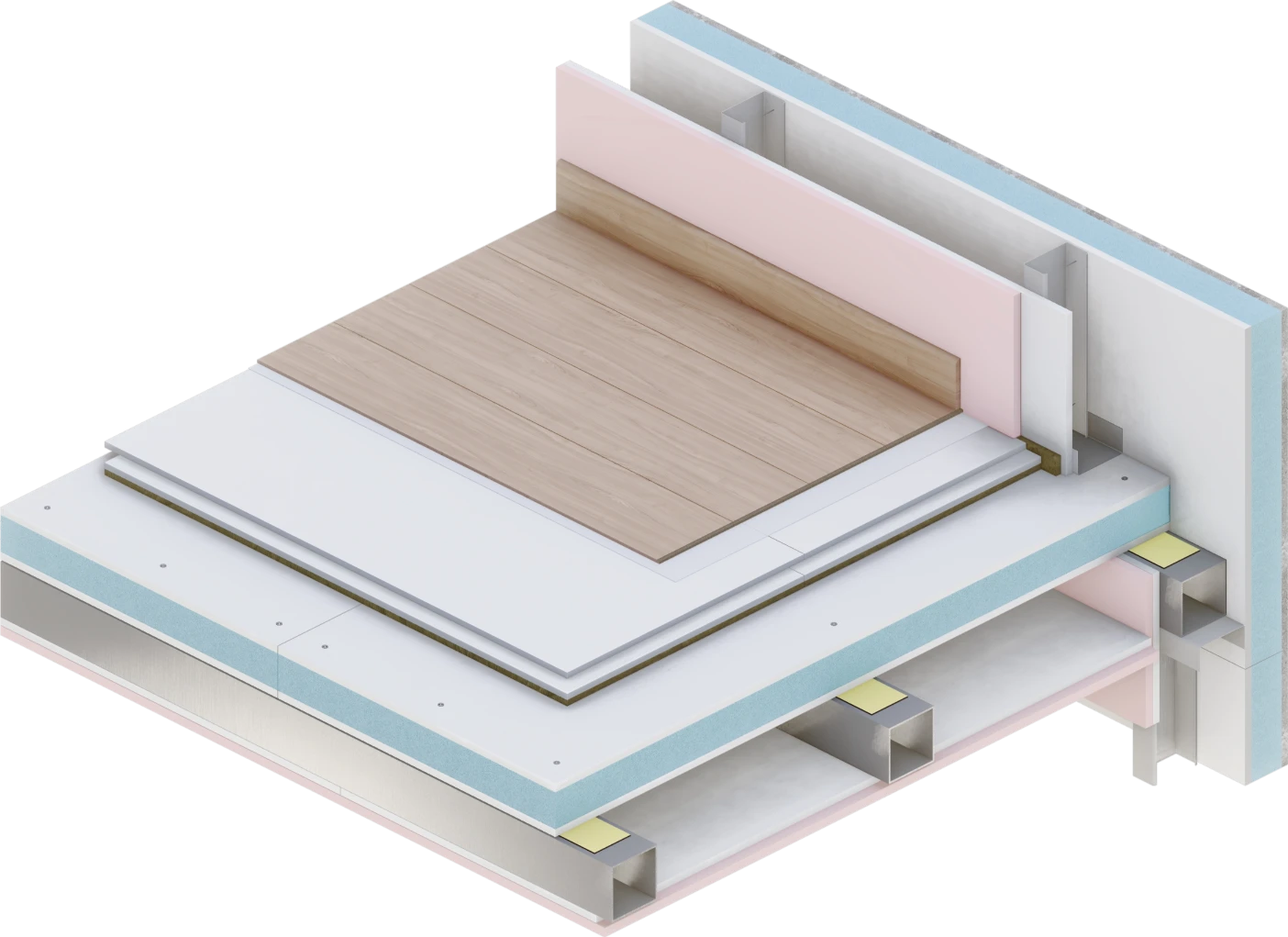

THERMOCHIP FLOOR-S is the certified solution for sanitary floors or floors in contact with the outside. Composed of a THERMOCHIP® exterior panel with a variable insulating core and a dry screed on the panel. Arrangement of supports every 60cm. Free finish.
-
1
THERMOCHIP®
Outer panel
-
2
dry screed
Optional anti-impact layer
-
3
Finish
Free
-
4
Structure
Supports every 60cm
-
5
acoustic tape
Optional.
Componentes del sistema
Finish
Free finish on dry screed.
dry screed
20mm dry slab on panel. Possibility of built-in anti-impact layer for greater acoustic performance.

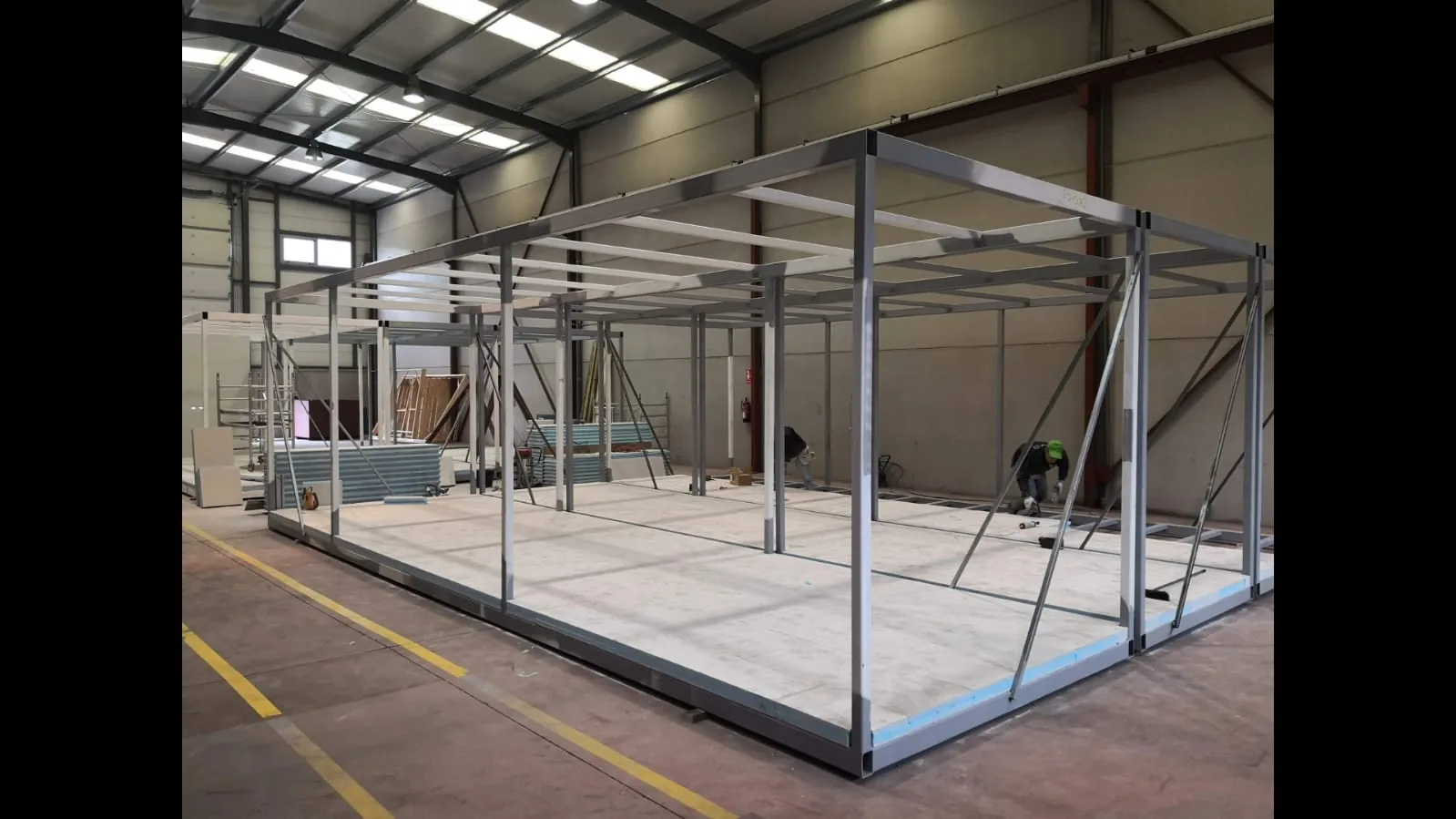

Structure
Wooden or mental supports every 60cm in walkable slabs.
acoustic tape
Possibility of installing acoustic tape between the structure and the Thermochip panel for greater impact noise reduction.
Características
Aislamiento térmico
Aislamiento acústico
Resistencia a fuego
Resistencia a cargas
Certificado DAU
Sistema ligero
Reducción de tiempos
Asistencia técnica
Certificados
DAU 20/121
Cerramiento de cubiertas planas, forjados entreplantas y forjados sanitarios con paneles multicapa compuestos por tableros de fibrocemento, planchas de XPS y tableros de fibroyeso.
PASSIVE HOUSE INSTITUT - COAT
With the Thermochip HOUSING Construction System the wintertime thermal insulation of buildings can be ensured. The system is constructed out of timber studs, beams and an outer sandwich panel.
Estándares de sostenibilidad, eficiencia energética y confort.
Certificado de Declaración Ambiental de Producto.
Estándares de sostenibilidad, eficiencia energética y confort.
Análisis de ciclo de vida
50%
menos de emisiones de CO₂
41%
menos de consumo energetico
65%
de ahorro en consumo de agua
