THERMOCHIP TFbcY

THERMOCHIP TFbcY, is made up of a fiber cement board on the outside that allows any coating, an extruded polystyrene core and a fiber plaster board on the inside.

1

Abroad

12.5mm thick fibrous cement board
2

Core

Extruded polystyrene (XPS) of variable thickness 40-200mm
3

Inside

12.5mm thick fibrous plaster board

1

2

3

Sizes

2400mm x 550mm

Características

Thermal insulation

Insulating core of variable thickness, allowing the thermal transmittance to be adapted to the needs of each project.

Acoustic insulation

Continuous acoustic insulation across the building envelope.

Wide range of finishes

A broad range of finishes to suit the requirements of each specific project.

Waterproof membrane

The PLUS system can be added on the outer face for extra resistance to water penetration.

ETA certificate

Insulating core of variable thickness, allowing the thermal transmittance to be adapted to the needs of each project.

CE marking

Complies with European regulations, with CE marking.

Shorter installation times

Panels that combine decorative finish, insulation and external support in a single element.

Technical support

A technical department at your disposal to resolve any query.

Aislamiento térmico

Núcleo aislante de espesor variable que permite adaptar la transmitancia a las necesidades de cada proyecto.

Aislamiento acústico

Aislamiento acústico continuo en la envolvente del edificio.

Gran variedad de acabados

Amplia gama para adaptarse a proyectos específicos.

Lámina impermeable

Posibilidad de incorporar el sistema PLUS en el exterior para una resistencia extra al paso del agua.

Certificado ETE

Núcleo aislante de espesor variable que permite adaptar la transmitancia a las necesidades de cada proyecto.

Marcado CE

Cumple normativa europea con marcado CE.

Reducción de tiempos

Paneles que unifican decoración, aislamiento y soporte exterior.

Asistencia técnica

Departamento técnico a tu disposición para solucionar cualquier consulta.

Descargas

TFbcY – Product datasheet

THERMOCHIP-tfbcy-product-datasheet.pdf PDF 435.2 KB

Certificate DAU 20-121_d0e_Floor slabs-Flat roofs

THERMOCHIP-certificate-dau-20-121_d0e_floor-slabs-flat-roofs.pdf PDF 1,778.1 KB

Certificate DAU 20-120_d0e_Facades

THERMOCHIP-certificate-dau-20-120_d0e_facades.pdf PDF 1,937.2 KB

TFbcY_12-XPS-12_2,40×0,55m_ES

THERMOCHIP-tfbcy_12-xps-12_240055m_es.pdf PDF 165.2 KB Sign up to download

TFbcY

THERMOCHIP-tfbcy.dwg DWG 99.7 KB

Ir a descargas

Sistemas compatibles

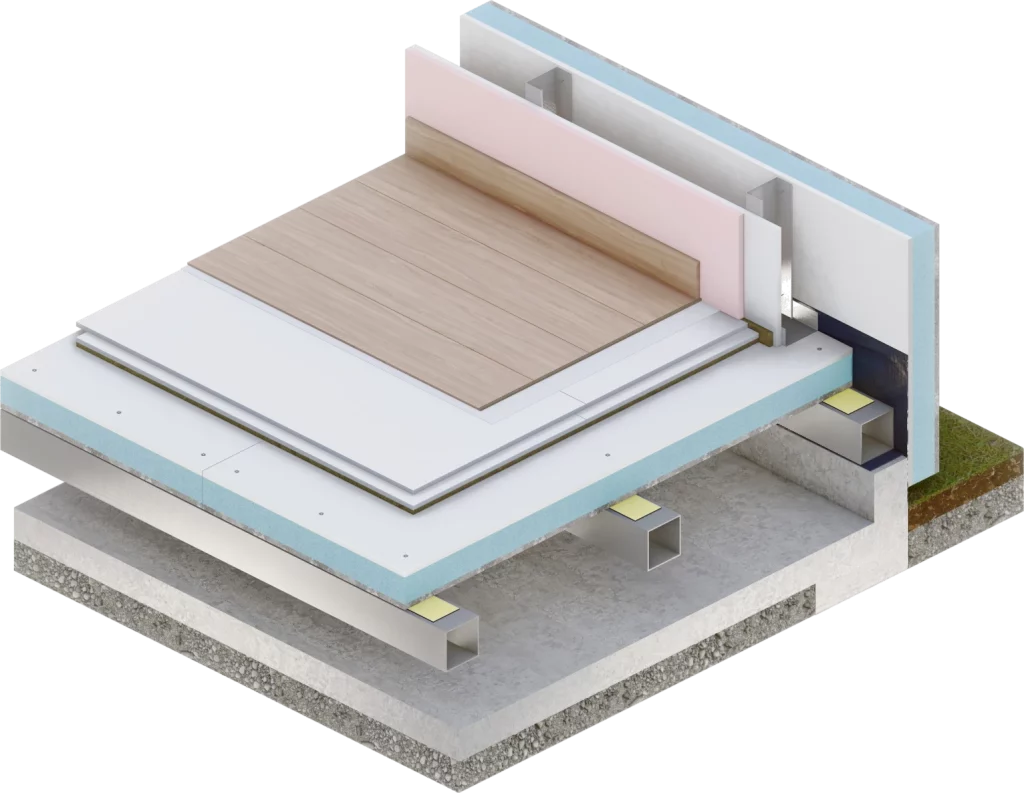

FLOOR-S

THERMOCHIP FLOOR-S is the solution for floors in contact with the outside, it is composed of an exterior panel THERMOCHIP® and different accessories.

ROOF

THERMOCHIP ROOF is the solution for the flat roofs of the building, it is made up of an exterior panel THERMOCHIP® and different accessories.

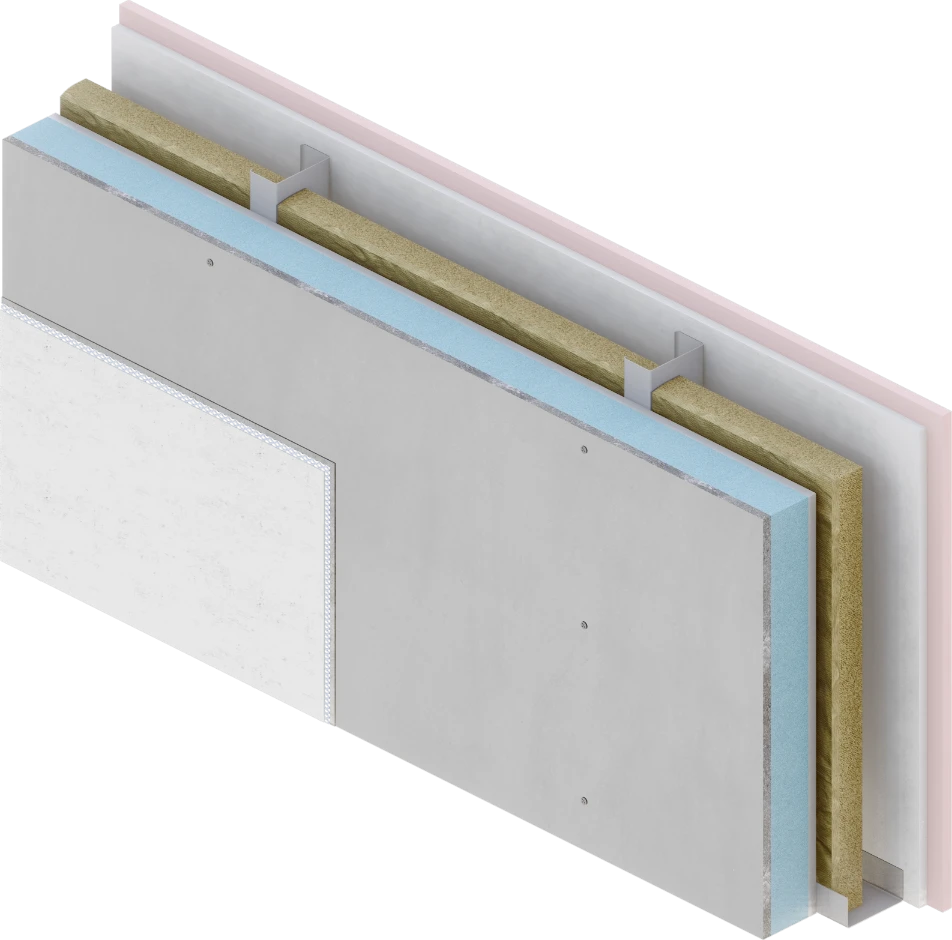

SATE

THERMOCHIP SATE is the standard façade solution, it is composed of an exterior panel THERMOCHIP® and a double-plate lining on the interior.

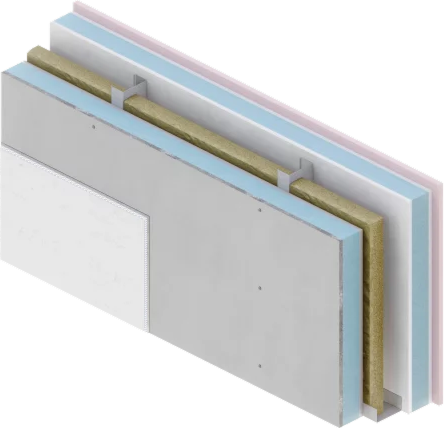

SATE-WALL

THERMOCHIP SATE-WALL is the façade solution with double panel THERMOCHIP®, it is composed of an exterior panel and a panel lining plus a plate inside.
